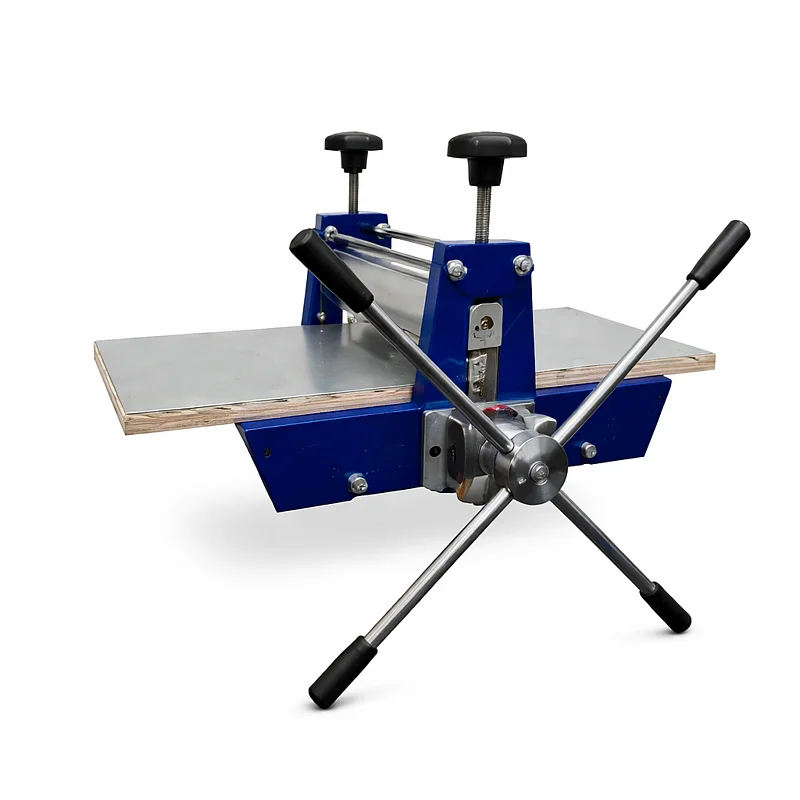

ETCHING PRESS WITH REDUCTION GEAR ABIG 17230 - WIDTH 300 MM
63124
Accessories
| DESCRIPTION | PRICE | Q.TY | |
|---|---|---|---|
|
WHITE FELT FOR INTAGLIO PRESS 5 MM - 29 X 90 CM |
€ 33,95
€ 27,83 ex VAT |
|
|
FELT DENSITY 0.28 KG/M3 FOR INTAGLIO PRESS 3 MM - 29 X 90 CM |
€ 54,95
€ 45,04 ex VAT |
|
|
SUPPORT TABLE FOR INTAGLIO PRESSES 100 X 75 CM |
€ 1.106,95
€ 907,34 ex VAT |
Spare parts
| DESCRIPTION | PRICE | Q.TY | |
|---|---|---|---|
|
METAL PRINTING PLATE ON WOOD THICK. 20 MM - 300 X 700 MM |
€ 210,95
€ 172,91 ex VAT |
Other items in the category
Frequently bought together
Detailed description
The Abig 17230 geared printing press, Made in Germany, is a professional machine designed for linocuts, woodcuts, etchings and intaglio printing. Its solid cast aluminium frame and 80 mm steel rollers ensure high, even pressure and consistent results. Suitable for artists, print studios and educational environments requiring precision, durability and smooth operation.
Key features
- Planetary gearbox with 2.2:1 reduction ratio for easier handling
- Robust cast aluminium construction
- Top and bottom steel rollers Ø 80 mm
- Pressure adjustable on both sides via star handles
- Multiplex bed with screwed electrolytic galvanized steel plate
Technical specifications
- Compressive force: approx. 2,500 kg
- Surface pressure: approx. 2,500 kg
- Clearance height: approx. 24 mm (up to 40 mm possible)
- Roller width: 300 mm
- Ø top roller: 80 mm
- Ø bottom roller: 80 mm
- Table width: 300 mm
- Table length: 700 mm
- Maximum format: ≤ DIN A3
- Footprint: 36 cm x 46.5 cm
- Weight: approx. 25.5 kg
- Matching felt: 29 x 90 cm
Details
Code
63124
Unit of measure
PZ
Brand
Abig
