ETCHING PRESS WITH REDUCTION GEAR ABIG 17235 - WIDTH 350 MM
63125
Accessories
| DESCRIPTION | PRICE | Q.TY | |
|---|---|---|---|
|
WHITE FELT FOR INTAGLIO PRESS 5 MM - 34 X 90 CM |
€ 38,95
€ 31,93 ex VAT |
|
|
FELT DENSITY 0.28 KG/M3 FOR INTAGLIO PRESS 3 MM - 34 X 90 CM |
€ 63,95
€ 52,42 ex VAT |
|
|
SUPPORT TABLE FOR INTAGLIO PRESSES 100 X 75 CM |
€ 1.106,95
€ 907,34 ex VAT |
Spare parts
| DESCRIPTION | PRICE | Q.TY | |
|---|---|---|---|
|
METAL PRINTING PLATE ON WOOD THICK. 20 MM - 350 X 700 MM |
€ 221,95
€ 181,93 ex VAT |
Other items in the category
Frequently bought together
Detailed description

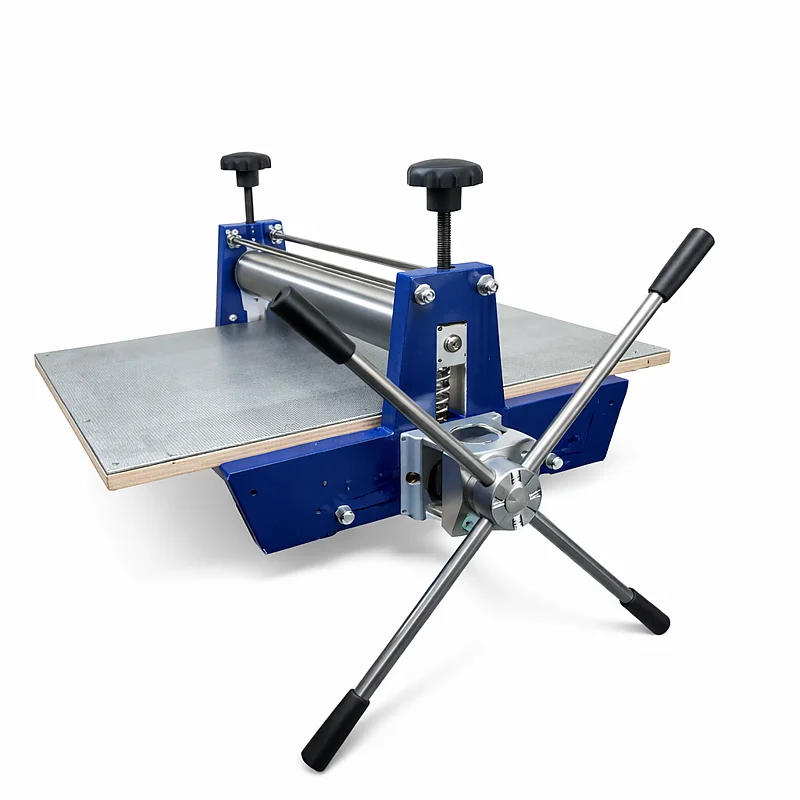

The Abig 17235 geared printing press, made in Germany, is designed for linocuts, woodcuts, etchings and intaglio printing. Its solid cast aluminium frame and Ø 80 mm steel rollers ensure high, even pressure and consistent results. The four-spoke handwheel with 2.2:1 planetary reduction allows smooth operation, even with larger plates.
Key features
- Planetary gearbox with 2.2:1 reduction ratio
- Strong cast aluminium construction
- Top and bottom steel rollers Ø 80 mm
- Pressure adjustable on both sides via star handles
- Multiplex bed with screwed electrolytic galvanized steel plate
Technical specifications
- Compressive force: approx. 2,500 kg
- Surface pressure: approx. 2,500 kg
- Clearance height: approx. 24 mm (up to 40 mm possible)
- Roller width: 350 mm
- Ø top roller: 80 mm
- Table width: 350 mm
- Table length: 700 mm
- Maximum format: ≤ DIN A3
- Footprint: 41 cm x 46.5 cm
- Weight: approx. 27.8 kg
- Matching felt: 34 x 90 cm
Details
Code
63125
Unit of measure
PZ
Brand
Abig
